EKM Powershop

To setup your EKM Powershop store with Despatch Cloud please follow the installation and setup instructions as below.

If you would like support setting up your EKM Powershop store with Despatch Cloud you can call us on 01377 455 180 or email [email protected].

If you want to know more about EKM Powershop you can visit the official EKM Powershop website https://www.ekmpowershop.com

EKM Powershop

Note: To setup an EKM Powershop store with Despatch Cloud you must have the login credentials for the EKM store you wish to setup.



To setup your EKM store follow the below steps. If you need help or have any questions please contact us.


Step 1
Login to your Despatch Cloud account.

Step 2
Click on the Settings > Sales Channels menu option from the left hand menu (as below).


Step 3

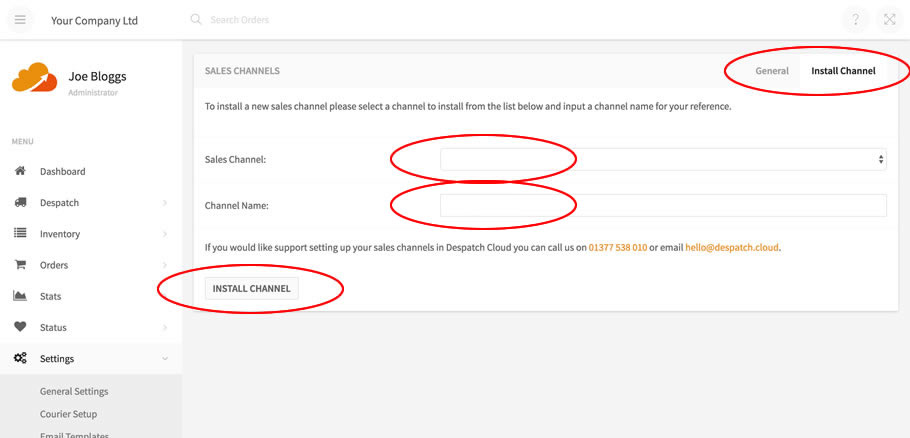

Click on Install Channel (top right) and select EKM Powershop from the sales channels dropdown menu. Input a name for the EKM store you are adding (example: EKM or the name of the EKM store on EKM) and click on the Install Channel button (as below).


Step 4
You will see the new EKM sales channel auto install and a number of data fields will now show under the new channel. In order to activate this channel it needs to be connected to your EKM Powershop store. You will see two data fields for API Key and Endpoint. To get the data for API Key and Endpoint, please log in to your EKM Powershop store.



Step 5
Once you have logged in to your EKM store, click on Features in the top menu.


Step 6
Once you are on the Features page, in the search bar, search for API and click on the ekmPowershopAPI that appears (as below).


Step 7
When you have clicked on the ekmPowershopAPI, click on the Install Feature button (as below).


Step 8
You will now see the EKM API installing (as below).


Step 9
Once the API has installed you will be presented with an API Key and a Endpoint (as below). These will need to be entered in to your Despatch Cloud EKM sales channel.


Step 10
Copy the API Key and Endpoint into your Despatch Cloud account under the new EKM store you installed in Step 4  (as below).


Step 11
Now your EKM store API Key and Endpoint are inputted into Despatch Cloud the last step is to fill out the remaining data fields for the new EKM store.

These fields are as follows:

FieldDescription
ActiveEnable this option to activate this sales channel.
Sync StockEnable this option to synchronise stock for this channel
Remove Channel:Use this option to remove the sales channel (you will not want to do this if you are currently adding it, however it worth knowing how to remove a sales channel).

Note: To use this option select Yes from the dropdown, then click the Save Changes button at the bottom of the page. The Sales Channel will then be removed, however orders from this channel will NOT be.
Company LogoSelect the image you would like to appear on your invoice/packing sheet.
Company NameEnter the company name you would like to appear on your invoice/packing sheet.
Company Return AddressEnter the return address you would like to appear on your invoice/packing sheet.
Company Reg InfoEnter the company registration number you would like to appear on your invoice/packing sheet.
Company EmailEnter the email address you would like to appear on your invoice/packing sheet.
Company PhoneEnter the company phone number you would like to appear on your invoice/packing sheet.
Invoice TemplateEnter the invoice template you would like to use for your invoice/pacing sheet.

Note: You can upload/download invoice/packing sheet templates under the Settings > Print Templates menu option from the left hand menu.
Name TranslationEnable this option to add the local inventory item name to the invoice/packing sheet as well as the sales channel name.
(This option is very useful if your item names differ across your sales channels or if you're selling on international sales channels.)
Despatch Email ActiveEnable this option to send an email to the customer (with tracking data if applicable) when the order is despatched.
Email SubjectEnter the email subject how you would like it to appear to the recipient.
Email FromEnter the company name that you would like the recipient to see on emails.
Email AddressEnter the email address that you would like the recipient to receive sent emails from.
Email TemplateSelect the template you would like to use for emails sent.

Note: You can create/edit email templates under the Settings > Email Templates menu option from the left hand menu.
Step 12

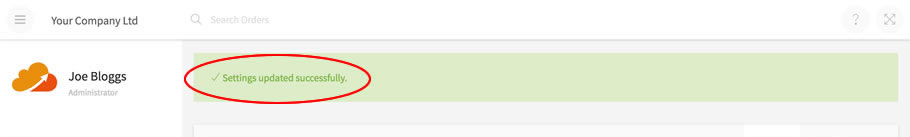

Save the data you have input using the Save Changes button at the bottom of the page. You will see a green dialog at the top of the page to confirm the settings have been successfully saved (as below).



Step 13
Your new EKM store is now integrated with Despatch Cloud and Despatch Cloud will now attempt to collect your despatch ready orders from your integrated EKM store. This is an automated process and runs every 30 minutes on the hour and half hour.


When you despatch an order with Despatch Cloud, Despatch Cloud will automatically update your new EKM store with the despatch data. Again this is an automated process and runs every 3 minutes, however requests are queued so at busy times this can take longer. You can view your request queue at any time under the Status > Request Queue menu option from the left hand menu.

If you would like support setting up this EKM store with Despatch Cloud you can call us on
01377 455 180 or email [email protected].
